Author Topic: Activator Guitar Pickups Wiring Diagram (Read 195 times)

bluplirst · « **on:** June 28, 2011, 01:56:29 PM »

Hi folks,

Just wondering if anybody has the wiring diagram for 3 single coil size activators and volume and filter pots. Also, if you have the diagram for the stratoblaster, I would love to see it.

I recently bought the Stralembic and the wiring is really messed up.

Thanks!

David Houck · « **Reply #1 on:** July 05, 2011, 06:41:33 PM »

You might want to try posting a picture of what you've got.

bluplirst · « **Reply #2 on:** July 08, 2011, 05:47:25 PM »

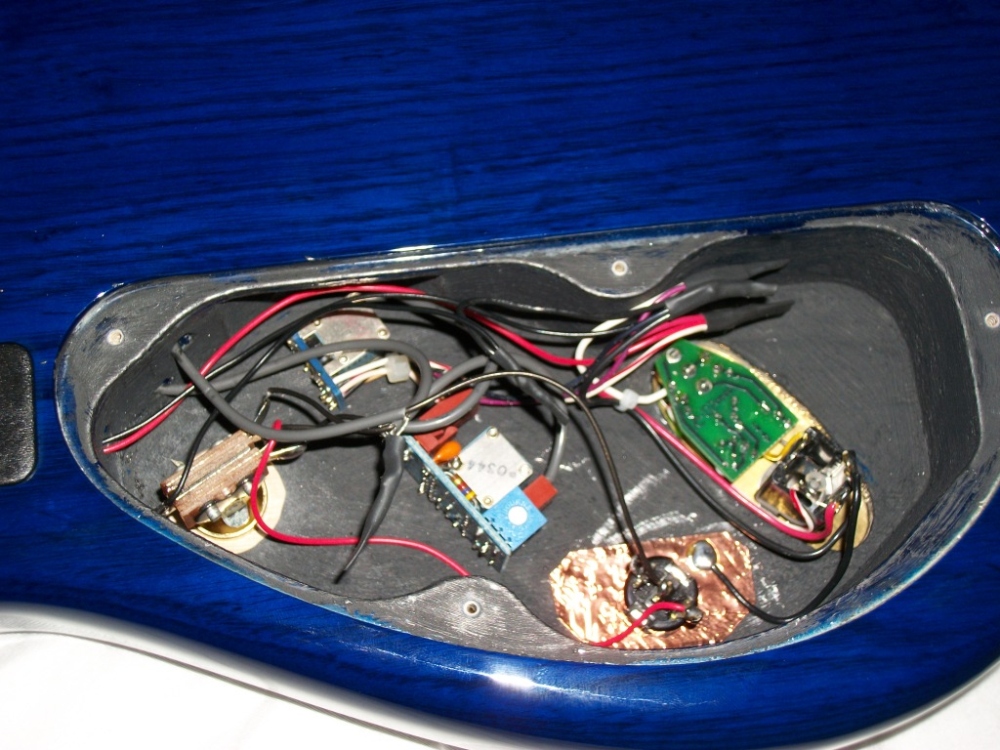

Sure

http://i377.photobucket.com/albums/oo216/Bluplirst/000_0002-25.jpg

(Message edited by bluplirst on July 08, 2011)

David Houck · « **Reply #3 on:** July 08, 2011, 06:10:40 PM »

Here it is:
