Double Neck Dream

[rob_the_fiend]

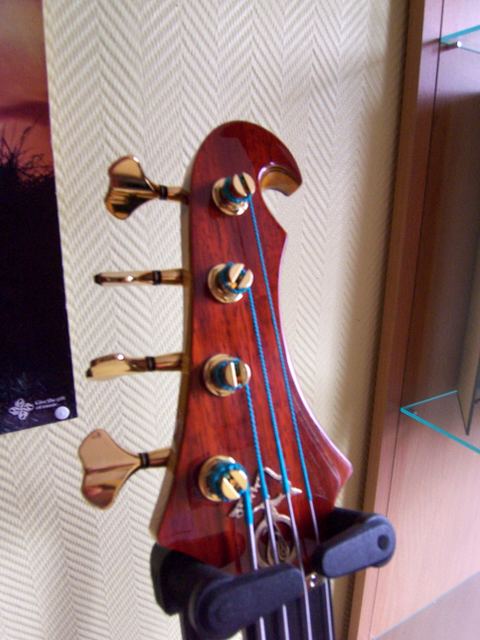

Like this:



Only 1.5 (38.1 mm) longer.

(Message edited by rob_the_fiend on April 27, 2008)

[senmen]

Rob,
if we would use this we need to place 4 on the left side as it will not work with the string spacing. But I would like to see the peghead in a normal position as well to decide what would look better.
Could you do this?

Oliver (Spyderman)

[FC Bass]

I do'nt see why it won't work with the string spacing...?



I think the reverse version looks much meaner (in combination with the other neck)

[rob_the_fiend]

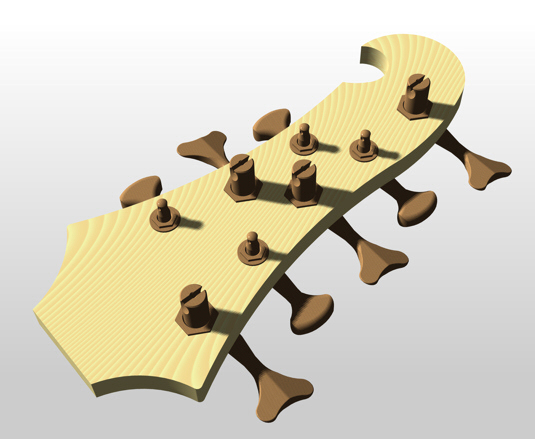

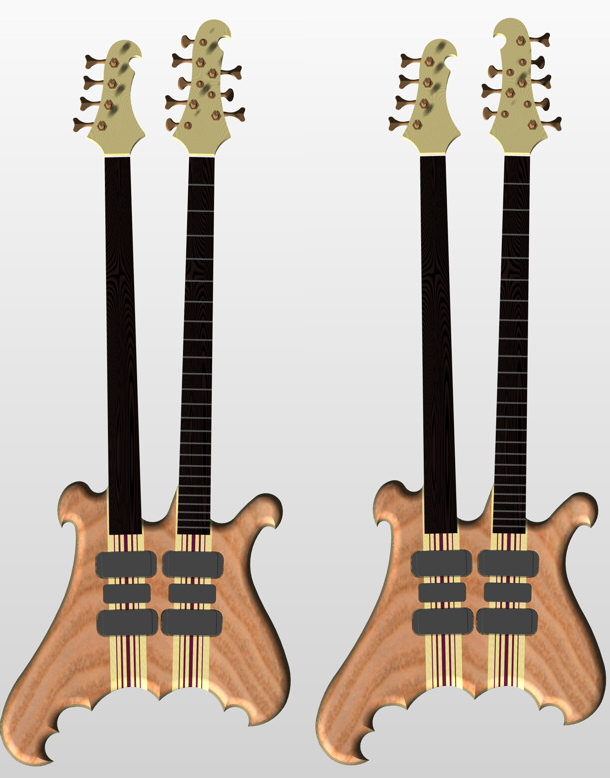

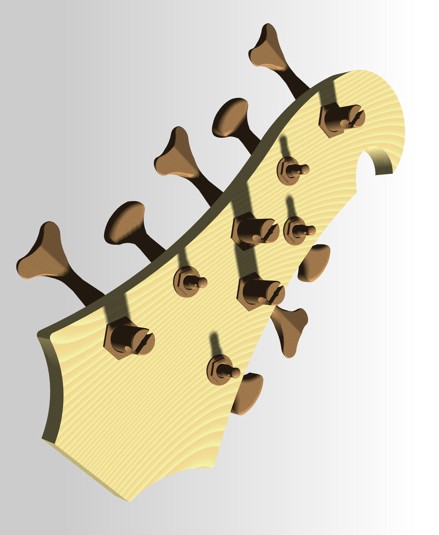

Two variations. Maybe it will look better with the pegheads the same way...


[senmen]

Rob, personally (my taste) I would prefer the two pegheads in line, classic layout. This looks more smooth to me. What do you think? Could you put a vermillion veneer on the tops of the headstock?

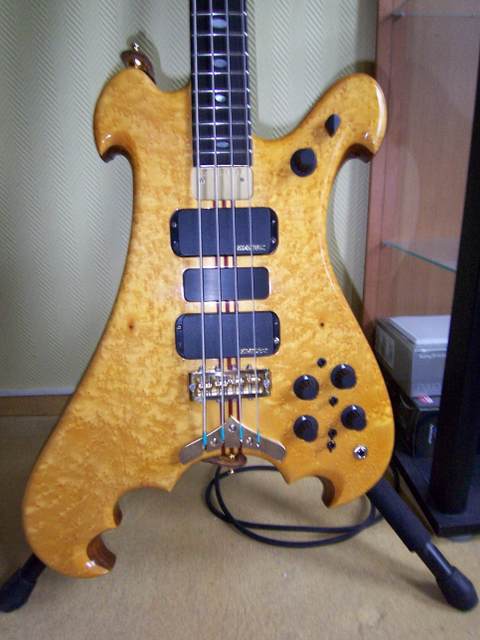

 As for the tailpiece I like the double version you showed on the original photo. Electronicwise I would go for the same 20th Anniversary than in my actual DW and only for one set of electronics  due to lack of space, means knob layout as on my DW and with an additional selector switch for the two necks, maybe located centered in the space behind the two bridge pickups?

 Oliver (Spyderman)

[rob_the_fiend]

Ok.
Do You know where I can get some drawings/blueprints of the knobs and the selector switches?

Isn't the area behind the bridges and in front of the tailpiece better for a switch?

[senmen]

Rob,
yep that would be a great place, better I think.
As for drawings I must pass; if I remember there are some pictures on the Alembic store? Would this help too?
Will take a look....

Oliver (Spyderman)

[senmen]

Rob, only these photos



  Oliver (Spyderman)  (Message edited by davehouck on August 10, 2008)

[rob_the_fiend]

Must be somewere it can be found.... who is the manufacturer?
I don't think Alembic makes those things themselves.

[rob_the_fiend]

Found one of them .... now... size?

http://www.ehcknobs.com/selector/index.php?series=109&action=step6&level=3&group=109P

[senmen]

Rob,

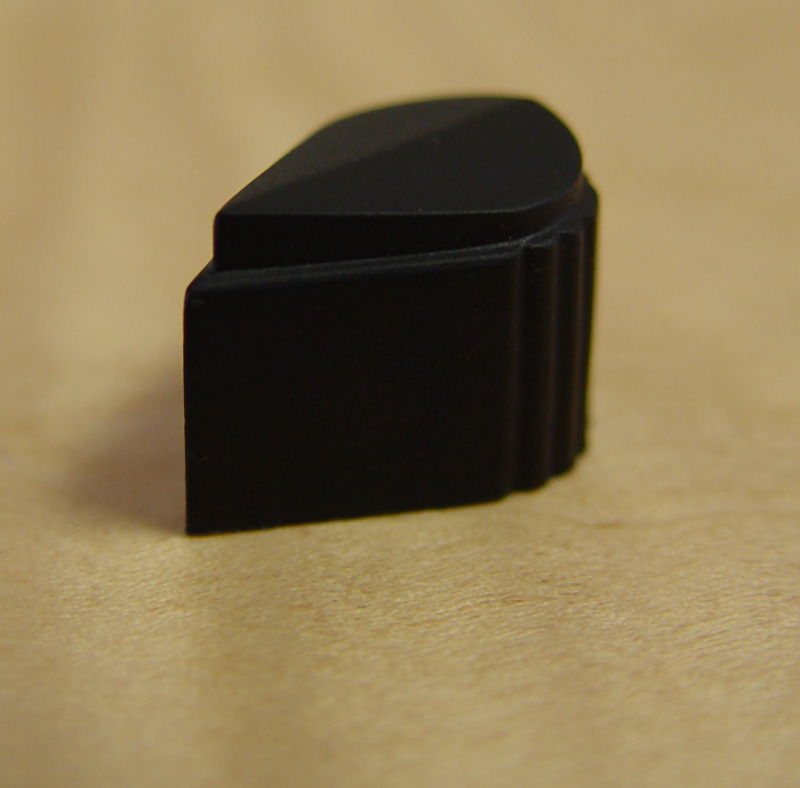

the pointer knob has a height of 1,2cms, a lenght from round end to point of 1,8cms and a diameter where the round part goes into the angle of 1,2cms.

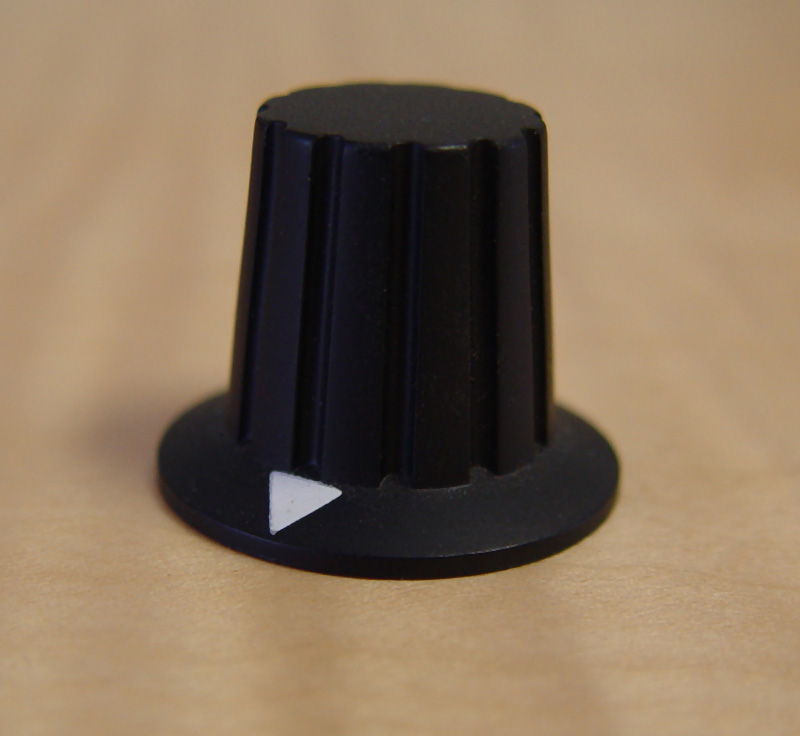

The round knobs are 2,15cms height in total, 1,9 without the lower rim, diameter is 2,5cms at base and at top it has 1,5cms.
Oliver (Spyderman)

[rob_the_fiend]

Thanks. That should do it, or, close enough.

[senmen]

Rob,
btw are you working on a pc or a mac?

Oliver (Spyderman)

[rob_the_fiend]

PC. I've never used a Mac.

[senmen]

Rob,
could you alternatively put the other small tuner
also on the right side while taking the tuners
on the right side in line with those on the left side
while keeping the long length of the headstock.
Think it would look better to have them equal
on both sides.
Cheers
Oliver (Spyderman)
