Author Topic: DS-5R Power Supply (Read 128 times)

kata3901 · « **on:** June 24, 2004, 03:22:54 PM »

All,

Does anyone or can anyone provide a photo of the Stereo/Mono switch wiring from the inside of a DS-5R Power Supply? I am not an electrician, however, I am trying to ensure correct wiring to this switch.

Thanks!

TB

lothartu · « **Reply #1 on:** June 24, 2004, 05:28:39 PM »

Search for posts under my name and you'll find a thread where I have the pin outs described. The search isn't working for me atm.

peter_jonas · « **Reply #2 on:** June 25, 2004, 12:59:18 AM »

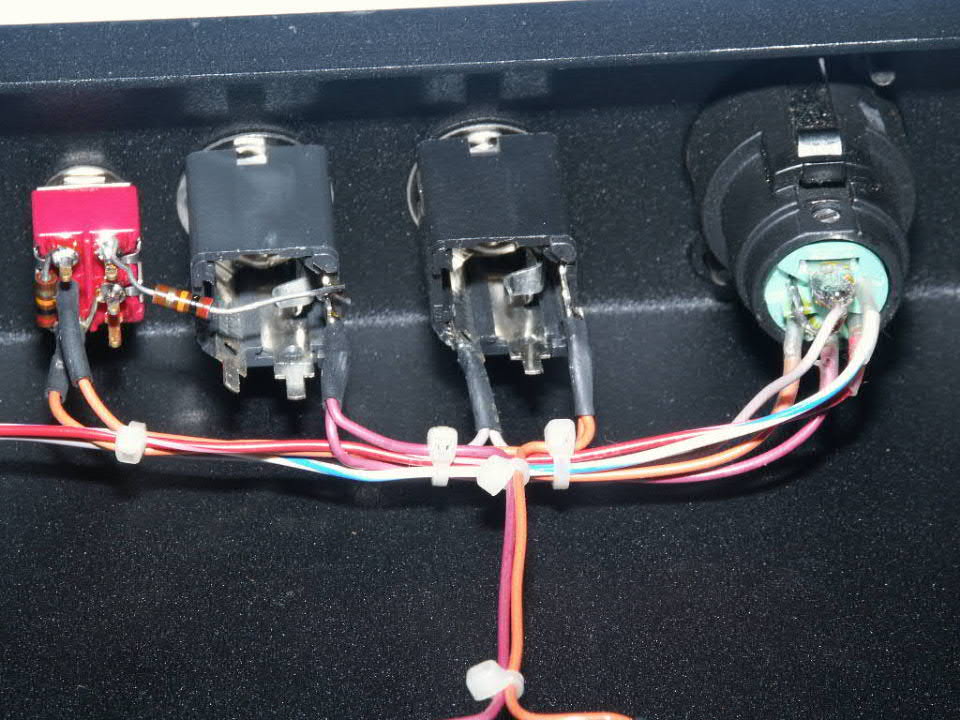

Here is one from the archives ...

I hope it helps.

kata3901 · « **Reply #3 on:** June 30, 2004, 03:12:42 PM »

Thanks a ton! This is exactly what I needed to see.
